Class 10 Board Exam  Important Diagrams (Physics)

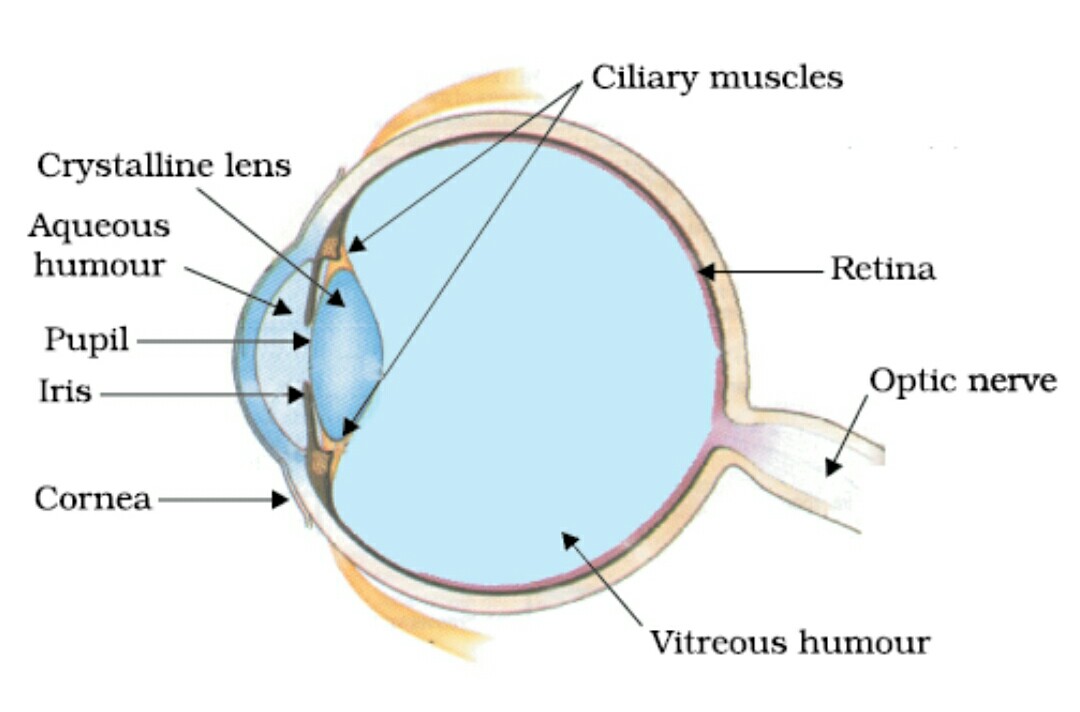

The Human Eye

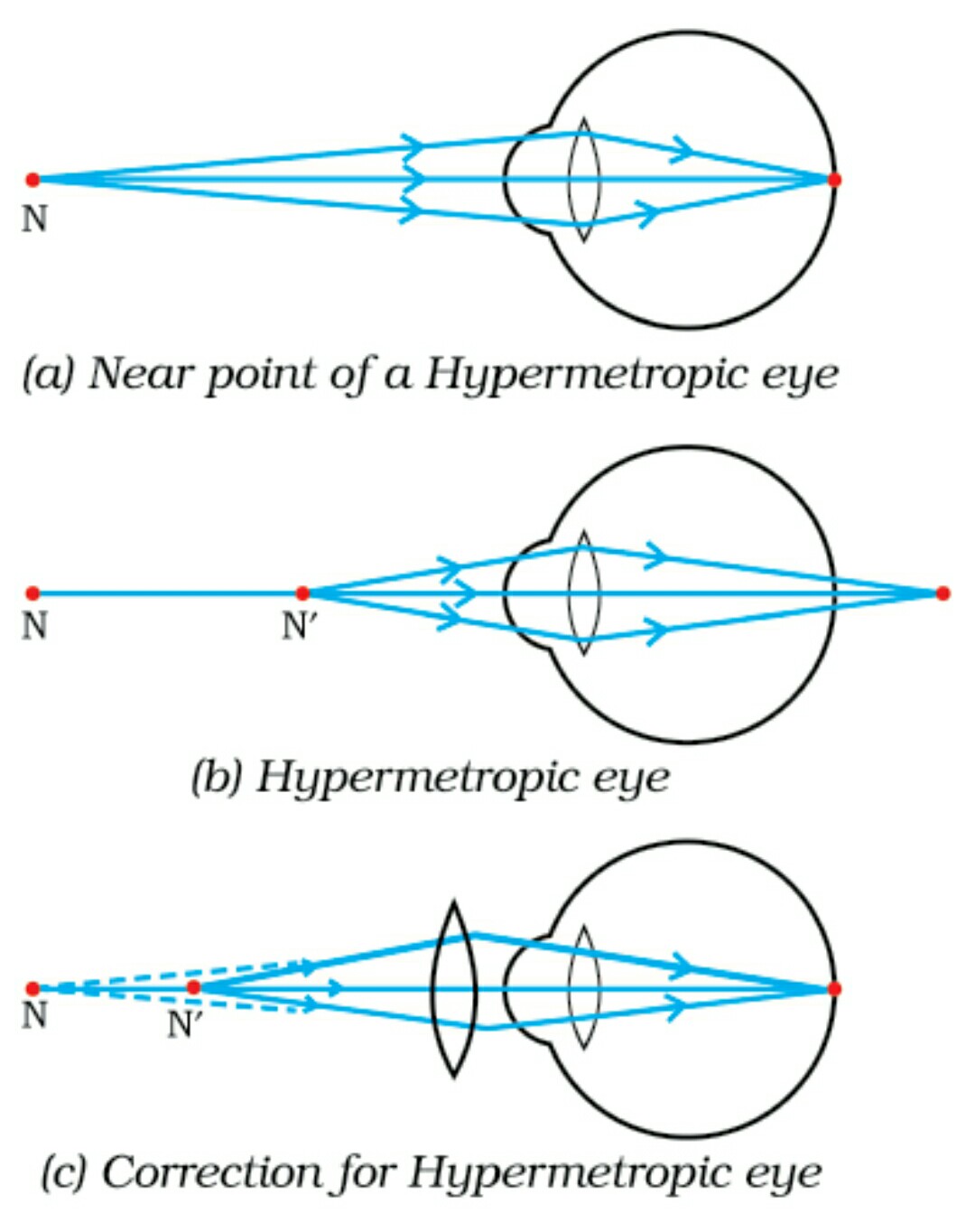

Vision Defect- Hypermetropia and correction with concave lens

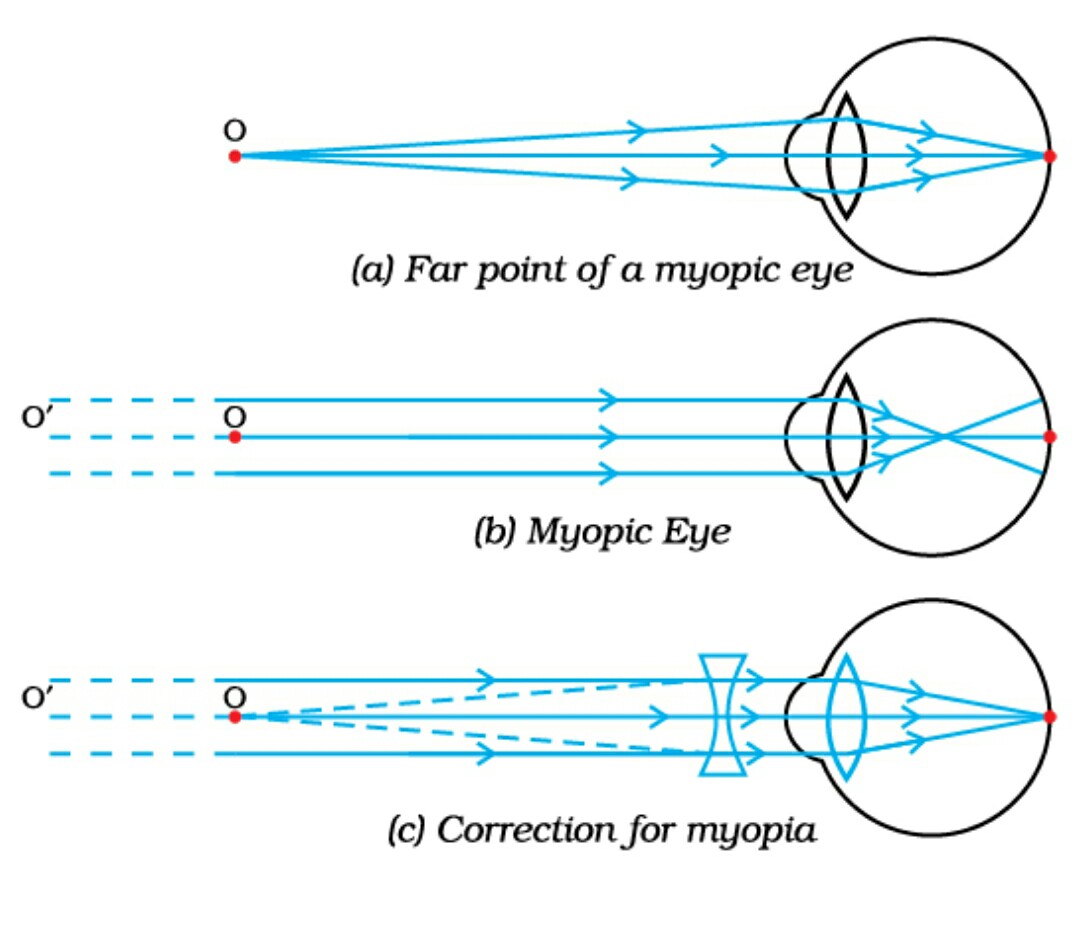

Vision Defect- Myopia and correction with convex lens

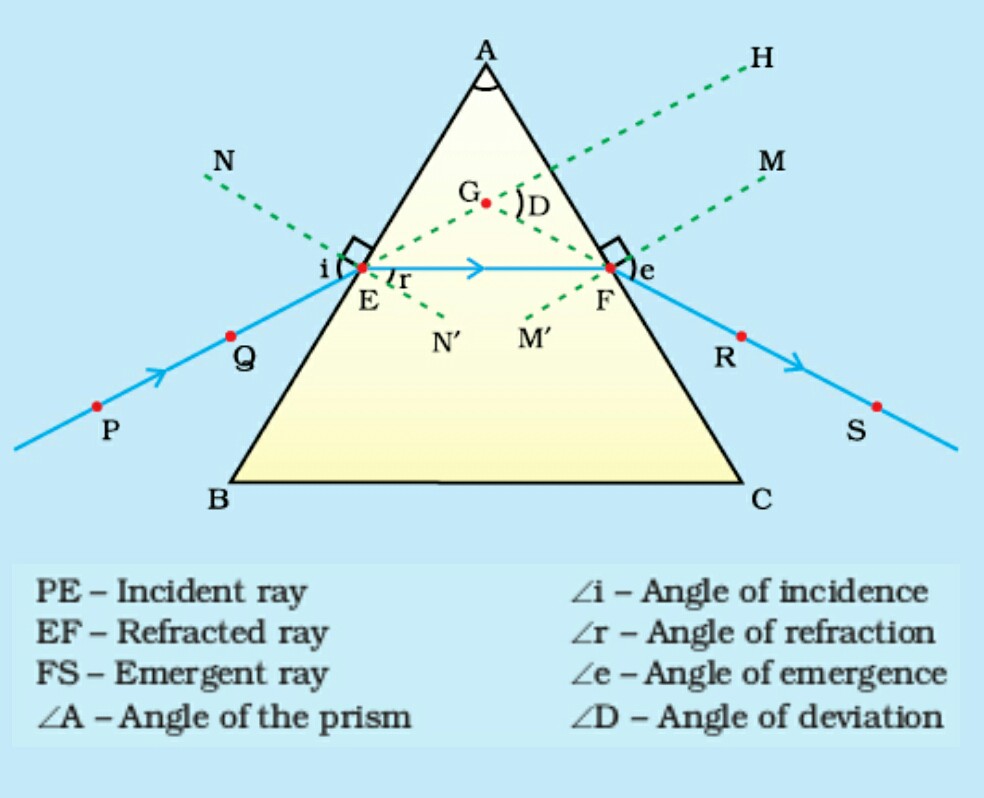

Refraction of Light Through Triangular Glass Prism

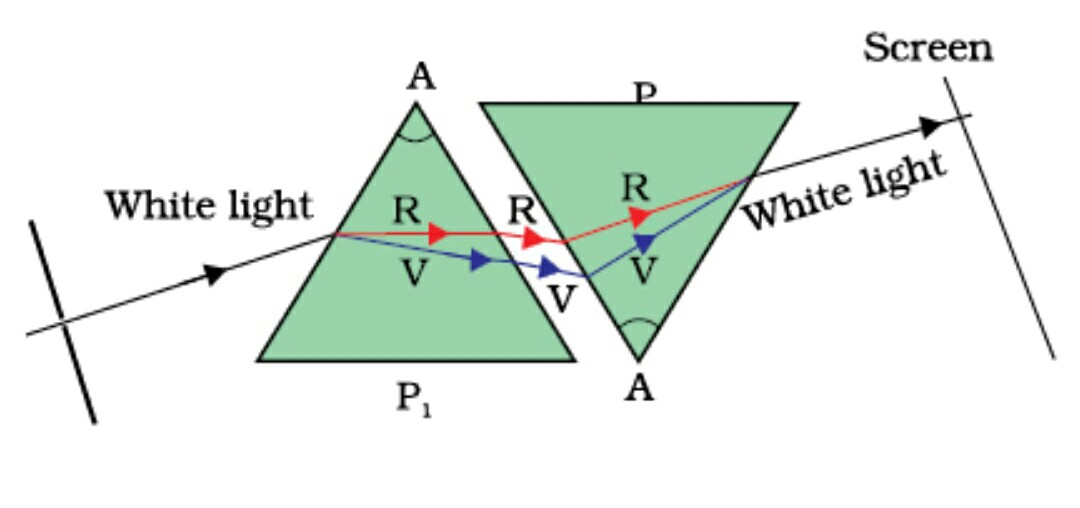

Recombination Of The Spectrum Of White Light

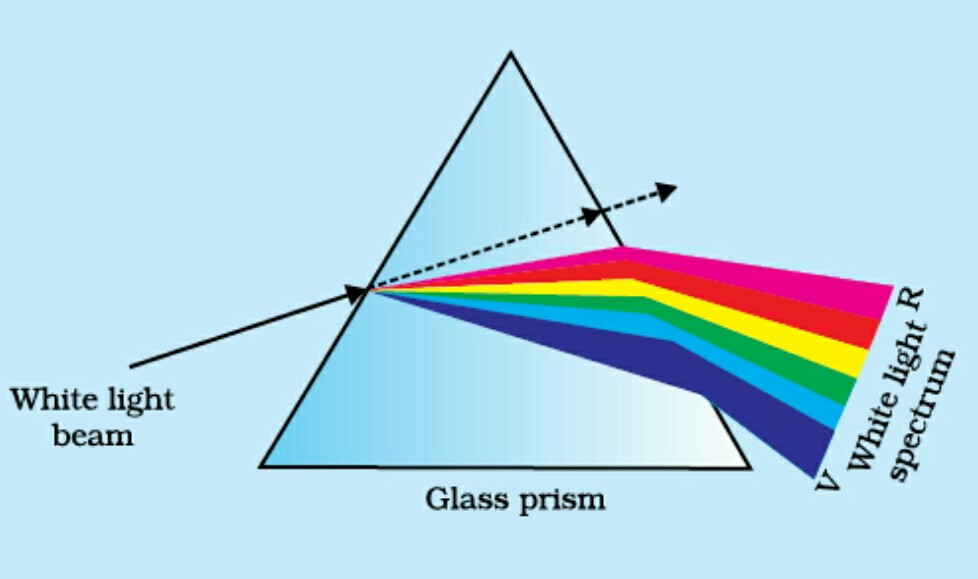

Dispersion Of White Light By The Glass Prism

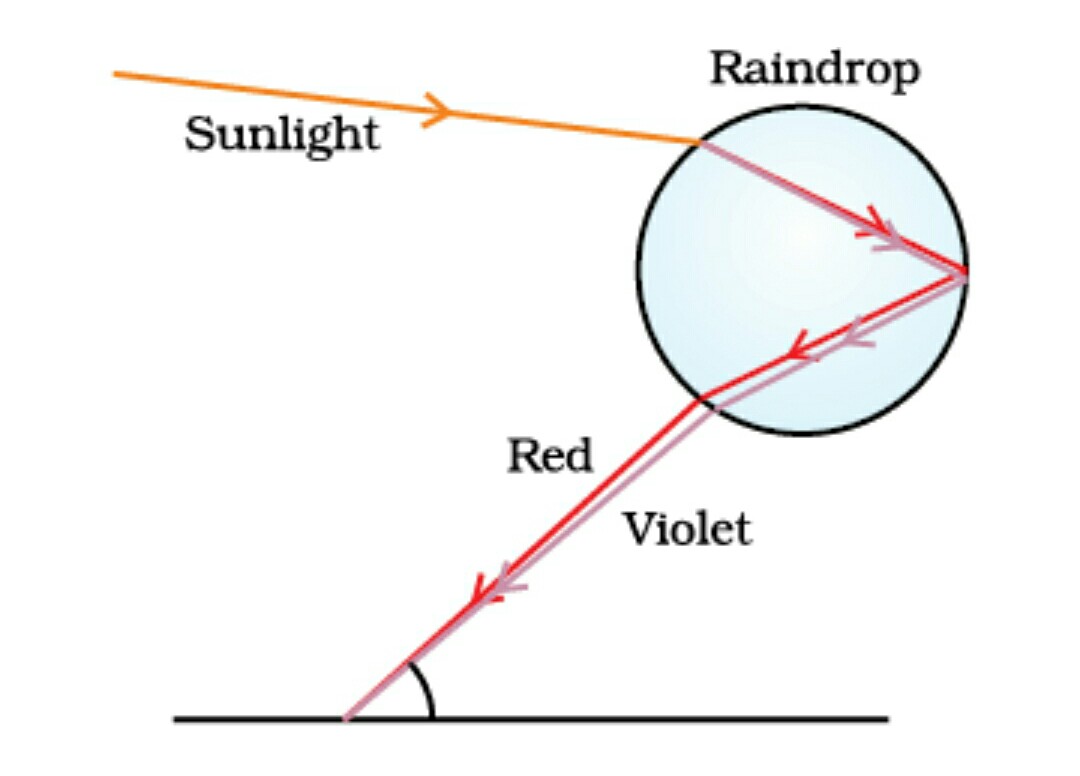

Rainbow Formation

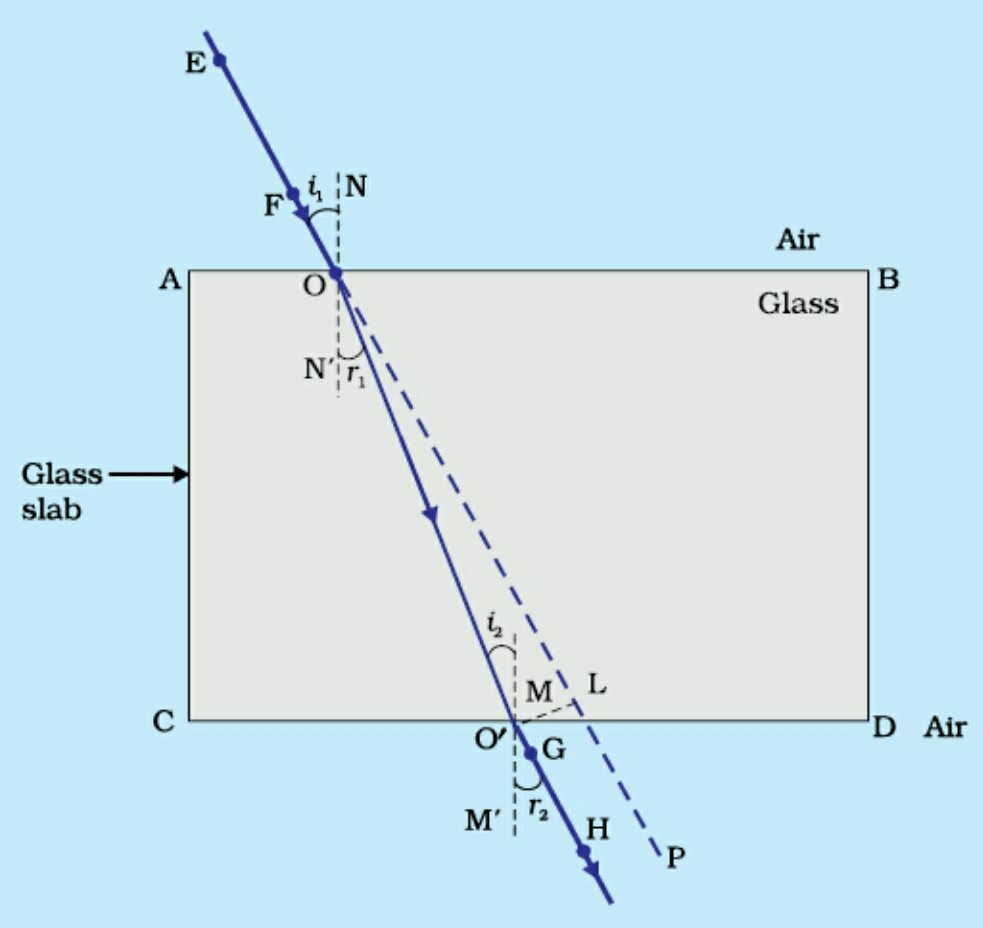

Refraction Of Light Through Rectangular Glass Slab

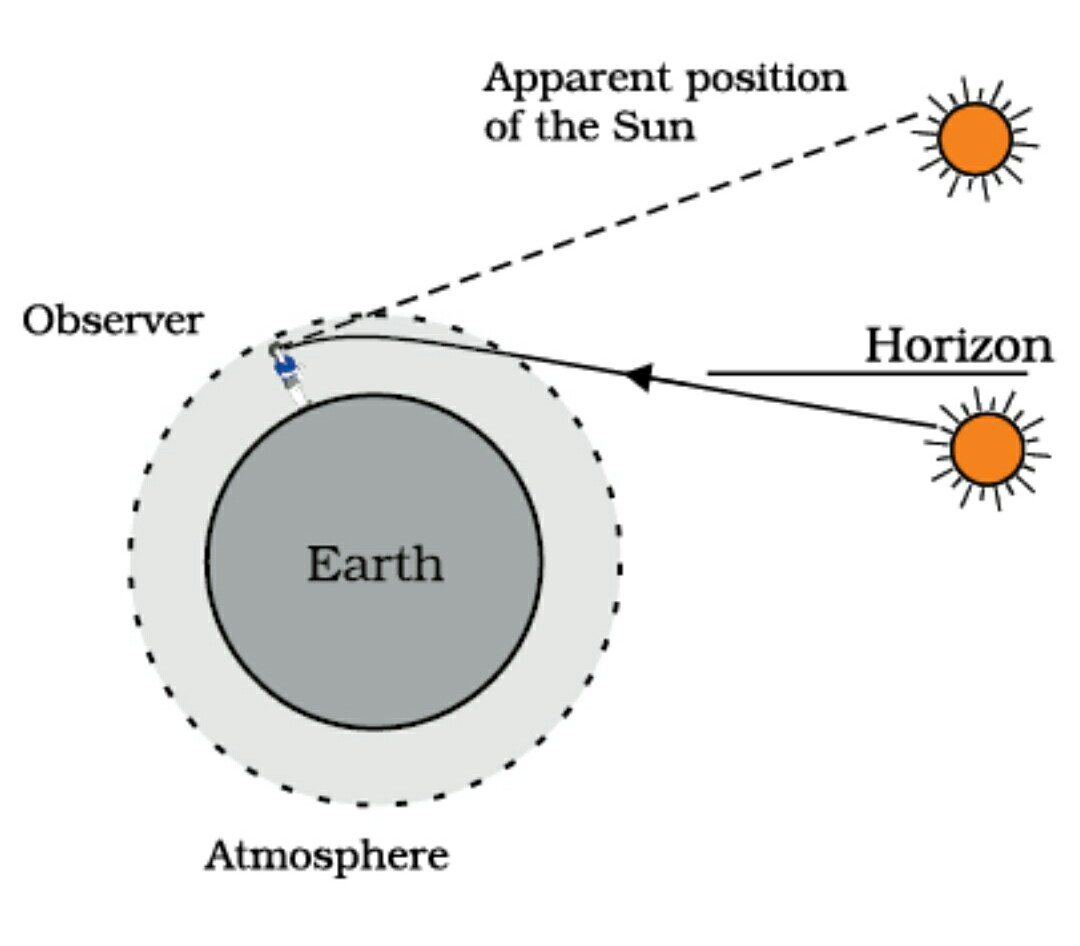

Atmospheric Refraction Effects At Sunrise and Sunset

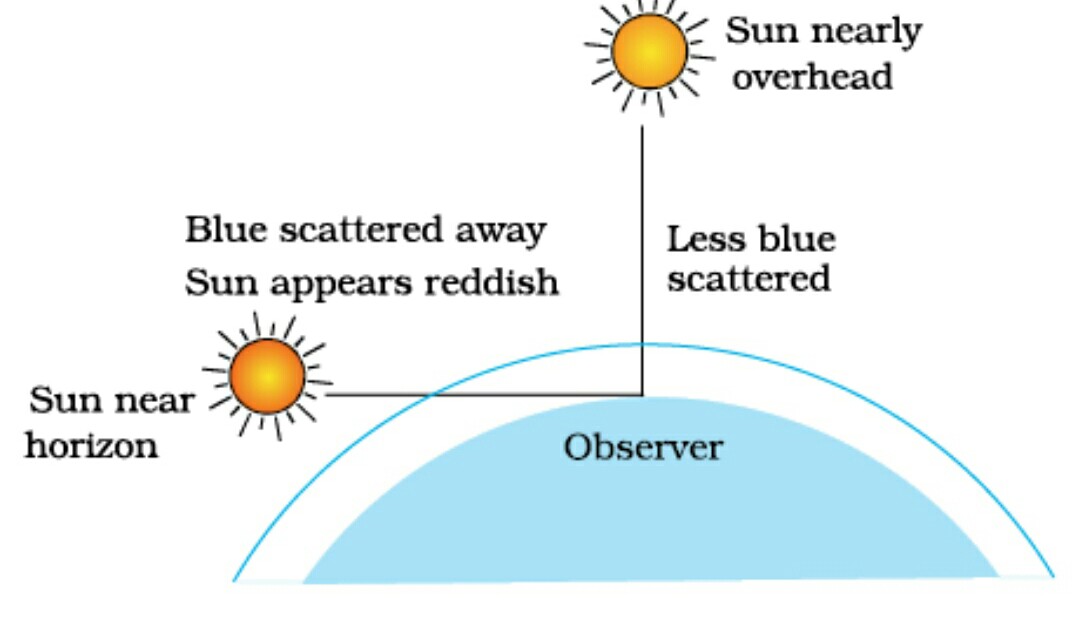

Reddening Of The Sun At Sunrise And Sunset

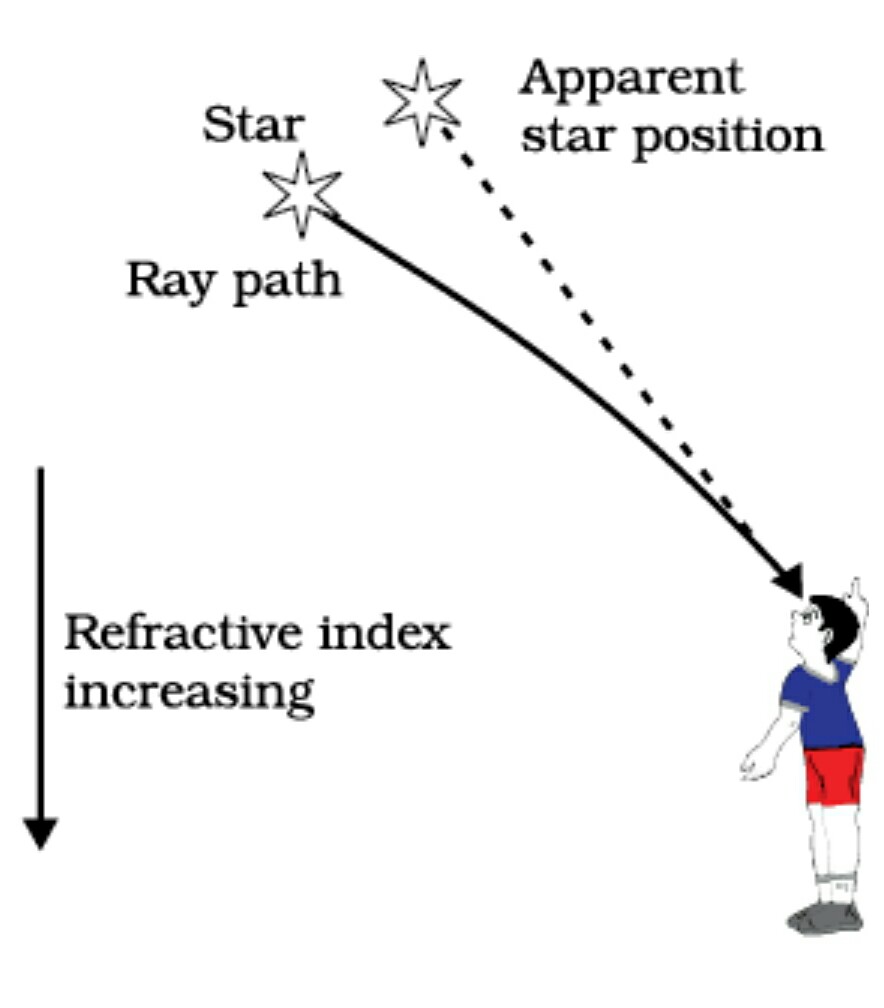

Apparent Star Position Due to Atmospheric Refraction
